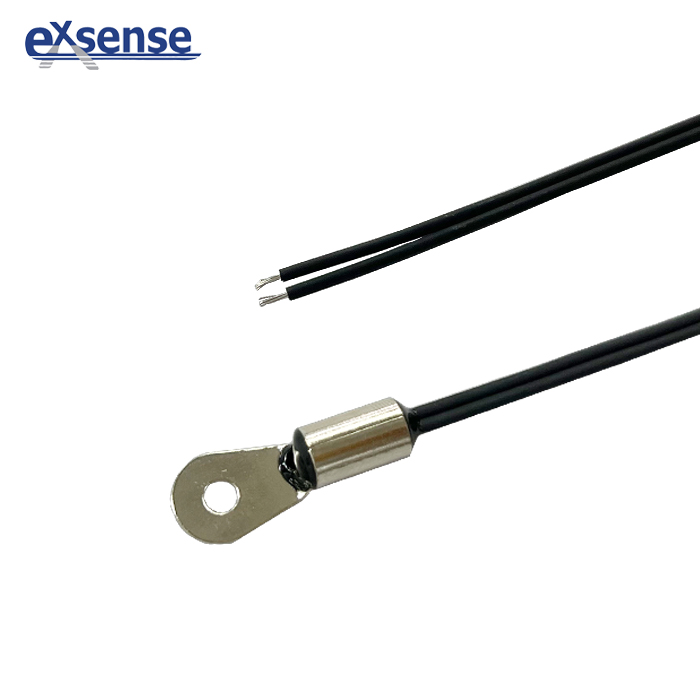

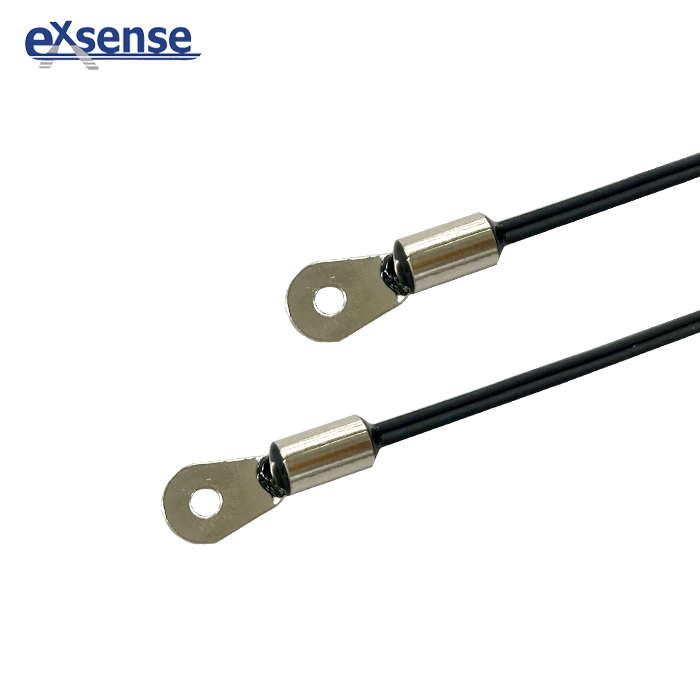

10K 3435 Metal Ring NTC Temperature Sensor for Energy Storage
This NTC thermistor Sensor belongs to the TS series. It can be supplied with various NTC thermistors to suit your application. Due to their high stability, they are widely used in Energy Storage and other applications.
EXSENSE
- Tel +86 13679565096
- Email sak@exsense.net/ saa@exsense.net
Product feature
Product characteristics
Product application
Product specification
Product feature
- Stable Performance and High Reliability
- Easy to Install
- High Thermal Conductivity
- Encapsulated with Tin-Plated Copper Metal Ring
- Customizable in Various Sizes and Parameters
Product characteristics
- Thermal Response Time: ≤10 seconds (in a water bath).
- Dissipation Factor: Approximately2 mW/°C (in still air).
- Voltage Withstand Test: AC 1500V, 0.5mA 3seconds.
- Insulation Resistance: ≥100 MΩ
- Rated Power: ≤10 mW.
Product application
- Photovoltaic Energy Storage, CCS Energy Storage
- Vehicle-mounted Frequency Converters, Inverters, Transformers, Controllers
- EV Charging Stations and Charging Guns
- OBC Series Battery Packs
NTC thermistor sensor is widely used in Automotive Battery,Energy Storage, CCS Energy Storage，PTC Heater,BMS (Battery Management System)and other systems. it is with small size, fast thermal time constant and easy to install/ replace. EXSENSE supply all kinds of high quality NTC thermistor sensor, NTC Temperature Sensor
Product specification
- Product Model：TS103F25C3435FA-NL360A
- Wire : AWG26, AWG24 ,AWG 22 or Other
- Thermistor’s resistance value: R25=10kΩ±1%,B(25/85)=3435K±1%or different NTC R-T curve available
- Operating temperature range: -40℃～150℃
- All the materials comply with the RoHS requirement
| S | 502 |
|
F | 25C | 3990 | F | A | _ | M | L220 | A | |||||||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ |
| ① | ② | ③ | ④ | ⑤ | ⑥ | |||||||||||
| Product Series Code | Resistance @25℃ | R25
Tolerance |
Test Temp. of Resistance | B-value | B-value Tolerance | |||||||||||
| TS | TS Series
Temperature sensor |
502 | 5KΩ | F | ±1% | 25C | 25℃ | 3990 | B=3990K | F | ±1% | |||||
| ⑦ | ⑧ | ⑨ | ⑩ | |||||||||
| Test Temp. of B-value | Housing Material | Length | Distinguishing Code | |||||||||
| A | 25/50℃ | M | Metal | L220 | 220mm | A | Internal code | |||||
| Part No. | R25℃
(KΩ) |
B(K) | Rated power
@25℃ (mW) |
Dissipation factor(δ)
(mW/℃) |
Thermal time
constant (s) |
| 202F3600A | 2 | 3600 | 10-20 | 2-4 | 3-10 |
| 502F3470A | 5 | 3470 | |||
| 103F3435B | 10 | 3435 | |||
| 303F3936A | 30 | 3936 | |||
| 104F3950A | 100 | 3950 |
