Product details

Product category / Smart Home NTC Temperature Sensor

Epoxy Resin Coated NTC Thermistor Sensor

BT series is epoxy-coated bead NTC thermistors . They are widely used in automotive and smart home applications due to their high stability and wide operating range of -50°C/+150°C.

Datasheet Download

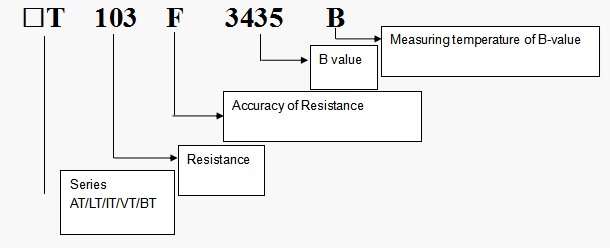

  1. Product Model：BT103F3950AEQ-22L55

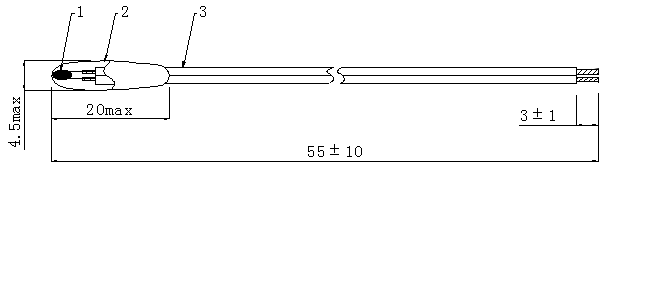

  2. Size:Epoxy-Coated Bead:Dia2.5-5mm
  3. Wire material:UL4413#22AWG
  4. Resistor resistance value:R25=10KΩ±1% B(25/50)=3950K±1%
  5. Operating temperature range: -30 to 150°C
  6. All the material accord with the RoHS requirement
