Product category / Electric Vehicle NTC Temperature Sensor

NTC Temperature Sensor for Automotive Oil Temperature

TS series NTC temperature sensors are available with a broad range of lead-wire types and lengths, double-insulated options, connector types and a wide range of NTC thermistors to suit your application.They are widely used in New energy vehicles, smart home or other applications due to their high stability and wide operating range of -30°C-+200°C.

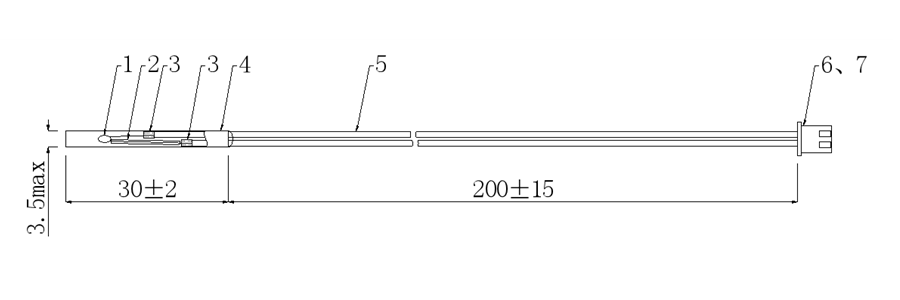

  1. Product Model:TS103H25C3950GAMI-SL200A
  2. Wire : AWG26, AWG24 ,AWG 22 or Other
  3. Wire length:50-2000mm
  4. Resistor resistance value: R25ºC: 10K ,B25/85ºC: 3435,B25/85: 3977, 3950 or different NTC R-T curve available
  5. Operating temperature range:-30℃~200℃
  6. All the materials comply with the RoHS requirement.
TS   104



F   25C   3950   F   A _ M   L130   A
Product Series Code Resistance @25℃ R25

Tolerance

Test Temp. of Resistance B-value B-value Tolerance
TS TS Series

Temperature sensor

104 10×104Ω F ±1% 25C 25℃ 3950 B=3950K F ±1%
Test Temp. of B-value Head Material Length Distinguishing Code
A 25/50℃ M Metal L130 130mm A First
Part No. R25℃

(KΩ)

B(K) Rated power

@25℃ (mW)

Dissipation factor(δ)

(mW/℃)

Thermal time

constant (s)

202F3600A 2 3600 10-20 2-4 3-10
502F3470A 5 3470
103F3435B 10 3435
303F3936A 30 3936
104F3950A 100 3950
