Product category / Smart Home NTC Temperature Sensor
TPE Probe NTC Temperature Sensor for Refrigerator
TS series NTC temperature sensors NTC thermistor sensors are TPE plastic-encapsulated sensors offering waterproof protection for a wide range of temperature sensing applications. The small sensor tip is moulded in the same TPE material.
Product feature
Product characteristics
Product application
Product feature
- Good waterproof performance due to integral moulding of TPE resin and wire
- Easy fixation with its flexibility
- Low temperature resistance, high reliability
- Customized specification
- Operating temperature: -50℃-120℃
Product characteristics
- Excellent long term stability coupled with precision interchange ability
- Uses TPE material as protective housings
- Rated power：10MW
- Thermal time constance ≤20S
- Dissipation factor2.6mW/C(in still air)
Product application
- E-vehicle Battery Management
- Refrigeration & HVAC Control
- Heat Pump sensors
- Air Conditioner, Freezer, Heat Pump etc.

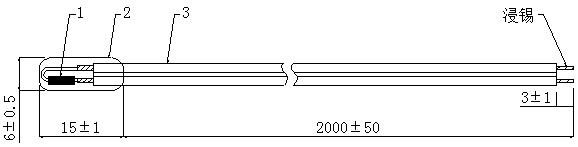

- Product Model： TS103F25C3435FB-SL2000A
- Wire material: TPE 24AWG
- Wire length:50-2000mm
- Resistor resistance value:R25=10KΩ±1% B(25/85)=3435K±1%
- Operating temperature range:-40℃～85℃
- All the material accord with the RoHS requirement
| TS | 103 |
|
F | 25C | 3435 | F | B | _ | S | L2000 | A | |||||||
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ |
| ① | ② | ③ | ④ | ⑤ | ⑥ | |||||||||||
| Product Series Code | Resistance @25℃ | R25
Tolerance |
Test Temp. of Resistance | B-value | B-value Tolerance | |||||||||||
| TS | TS Series
|
103 | 10×103Ω | F | ±1% | 25C | 25℃ | 3435 | B=3435K | F | ±1% | |||||
| ⑦ | ⑧ | ⑨ | ⑩ | |||||||
| Test Temp. of B-value | Head Material | Length | Distinguishing Code | |||||||
| B | 25/85℃ | S | Special | L2000 | 2000mm | A | First | |||
| Part No. | R25℃
(KΩ) |
B(K) | Rated Power
@25℃ (mW) |
Dissipation factor(δ)
(mW/℃) |
Thermal time
constant (s) |
| 202F25C3470FA | 2 | 3470 | 10-20 | 2-4 | 3-20 |
| 502F25C3600FA | 5 | 3600 | |||
| 103F25C3977FB | 10 | 3977 | |||
| 203F25C3743FB | 20 | 3743 | |||
| 104F25C4250FA | 100 | 4250 |
