Product category / Single Layer Capacitor
Universal chip capacitor (gold)
Single-layer chip capacitors produced by Guangdong Xinsheng Electronic Technology Co., Ltd. are characterized by small size, thin thickness (generally 0.15~0.5mm thick), low equivalent series connection and low loss. The application frequency can reach several GHz. They are suitable for small and microwave applications, and are widely used in microwave communication lines, optical transceivers, signal generators and other equipment.
Product feature
Product characteristics
Application
Product Drawing
Product feature
- Small size，large capacitance，excellent microwave performance
- Good solderability
- The borders help prevent short circuits（arcing at the chip edges）after die attachment，especially with conductive epoxy.The design also reduces handling damage from tweezers，and facilitates automated pick and place assembly processes.
Product characteristics
- It can be applied up to 40GHz
- Electrode structure: Tiw+Ni+Au
- Suitable for eutectic welding
Application
- Microwave integrated circuit, DC isolation，bypass，impedance matching，etc.
- The design allows the user to match line with or design a custom capacitor for limited circuit dimensions.

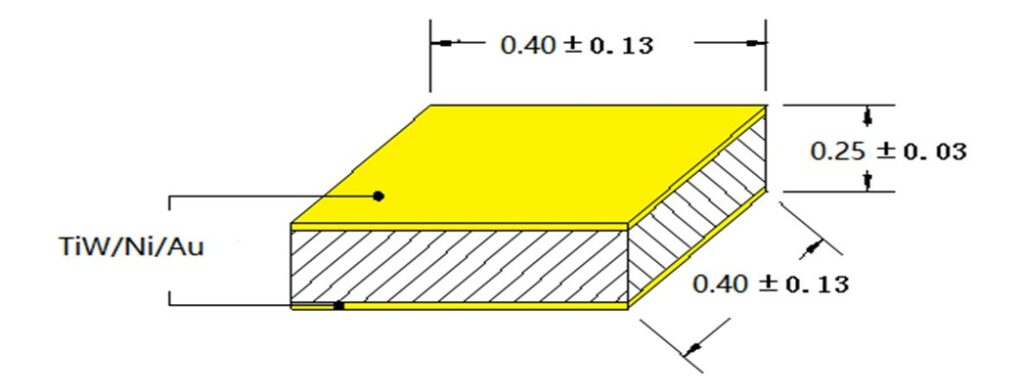

Product Drawing

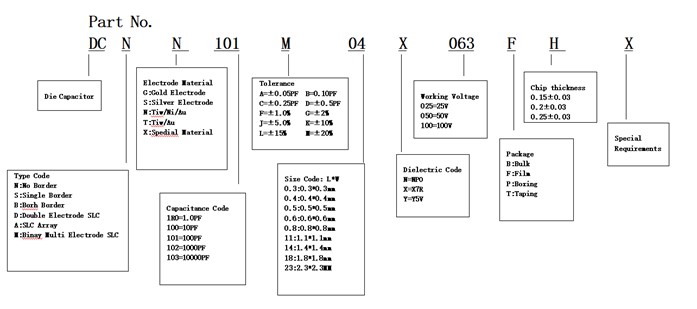

- Product Model：DCNN101M04X063F
- Capacity: 100PF ± 20% Test frequency: 1KHz ± 10%, test voltage: 1.0V ±2Vrms
- Insulation resistance: ≥ 10000M Ω Test voltage: 50V, test time: 60 ± 5S
- All materials meet ROHS requirements
| Material code | Dielectric constant（K） | Dielectric loss（DF）@25 ℃ | Insulation resistance（IR）@25 ℃ | Humidity characteristics（TC） | Temperature range | Eiatc model |
| N0 | 5 | <0.15%@1MHz | MΩ | 0±30ppm/ ℃ | -55～+125℃ | COG |
| N1 | 15 | <0.15%@1MHz | MΩ | 0±30ppm/ ℃ | -55～+125℃ | COG |
| N2 | 39 | <0.15%@1MHz | MΩ | 0±30ppm/ ℃ | -55～+125℃ | COG |
| N3 | 90 | <0.25%@1MHz | MΩ | 0±30ppm/ ℃ | -55～+125℃ | COG |
| N5 | 130 | <0.15%@1MHz | MΩ | 0±30ppm/ ℃ | -55～+125℃ | COG |
| N6 | 230 | <0.25%@1MHz | MΩ | -750±120ppm/ ℃ | -55～+125℃ | U2J |
| N4 | 300 | <0.25%@1MHz | MΩ | -900±500ppm/ ℃ | -55～+125℃ | A3L |
| N7 | 700 | <0.25%@1MHz | MΩ | -3300±500ppm/ ℃ | -55～+125℃ | S3L |
| B1 | 3000 | <2.5%@1KHz | MΩ | ±15% | -55～+125℃ | X7R |
| Y0 | 7000 | <3.0%@1KHz | MΩ | +22%/-56% | -30～+85℃ | Y5U |
| Y1 | 9000 | <3.0%@1KHz | MΩ | +22%/-56% | -30～+85℃ | Y5U |
| Y2 | 18000 | <3.0%@1KHz | MΩ | +22%/-82% | -30～+85℃ | Y5V |
| X1 | 20000 | <3.0%@1KHz | MΩ | ±15% | -55～+125℃ | X7R |
| X2 | 30000 | <3.0%@1KHz | MΩ | +22% | -55～+125℃ | X7S |
